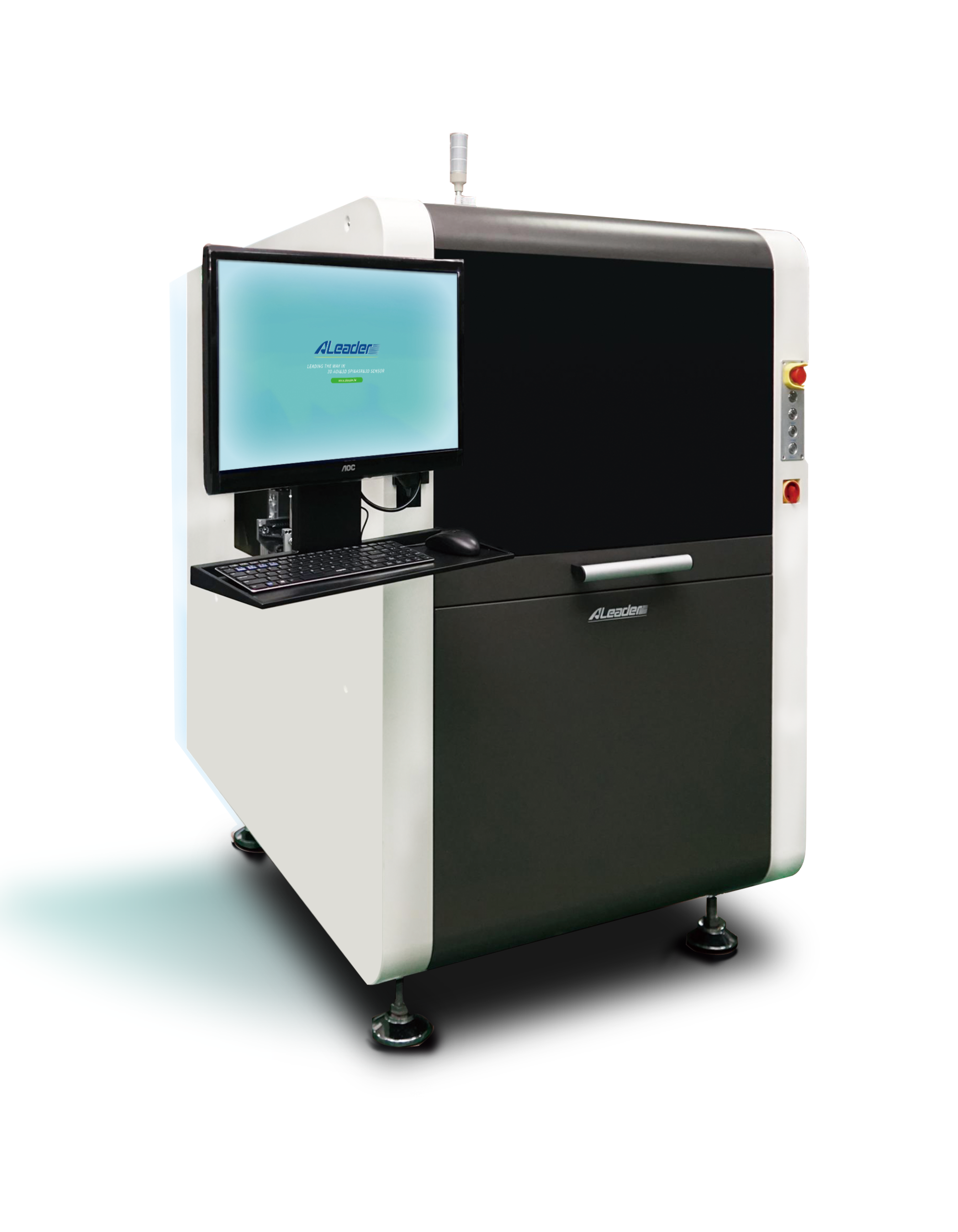

ALD7720TB Double sided 2D AOI

Full PCB inspection from both sides in a single pass

Single-Pass & Double-Sided SMT Inspection

Inspect both sides of the PCB in a single cycle – reducing handling time, minimizing the risk of damage, and improving overall throughput. The system also reduces line footprint, making it ideal for inline, offline, or inspection island configurations.

Mixed Technology Assemblies (SMT + THT)

Covers both SMT and through-hole technologies in a single inspection step, streamlining quality control and eliminating the need for multiple AOI systems.

Post-Repair / Rework Verification

After manual repair or selective rework, both sides of the PCB can be inspected before reintroduction to the line – ensuring full compliance with quality standards without additional reflow.

Through-Hole & Post-Wave / Selective Soldering Inspection

Top side inspection verifies component presence, orientation, and polarity.
Bottom side performs full 3D inspection of solder joints – including bridging, voids, and insufficient solder.
The system also detects wave-related defects such as solder splashes and lifted components.

Barcode & Marking Verification

A bottom-side 2D camera reads hidden barcodes, QR, and DataMatrix codes, supporting full MES integration and complete traceability.

Large Components & Mechanical Parts Inspection

Ensures correct placement and seating of large components such as connectors, sockets, and shield cans.
Detects coplanarity issues and verifies solder quality for reliable mechanical and electrical performance.
